MX23A12NF1-东莞市永幸电子科技有限公司

MX23A12NF1: 型号：MX23A12NF1; 封装：插件; 品牌：JAE(日本航空电子); SPQ：25个/托盘; 联系人：罗小姐; TEL：13751163369; QQ：3498460862

项目	MX23A12NF1
状态	Active
Number of Positions	12 pos.
Waterproof/ Non-waterproof	Waterproof
Connector Type	Pin header
Connector Style	Right angle
Wire Termination Style	-
Applicable Wire Size (AWG)	-
PCB Mounting Method	Soldering (Through-hole)
Material of Insulator	Glass filled PBT
Color of Insulator	Black
Material of Contact	Copper alloy
Finish of Contact in Connecting Area	Tin plating
Finish of Contact in Terminal Area
Finish of Contact in PCB Mounting Area	Tin plating
Applicable Cable Type	-
Applicable Cable Conductive Area (mm²)	-
Applicable Cable Sheath Diameter (mm)	-
Applicable Contacts
Use with Accessories
Applicable Product Part Numbers
符合危害性物質限制指令标准	10 substances (2011/65/EU, (EU)2015/863)
欧州化学物质规制标准	233 substances (17/01/2023)
组装	MX23A12SF1
Remarks	Standard type

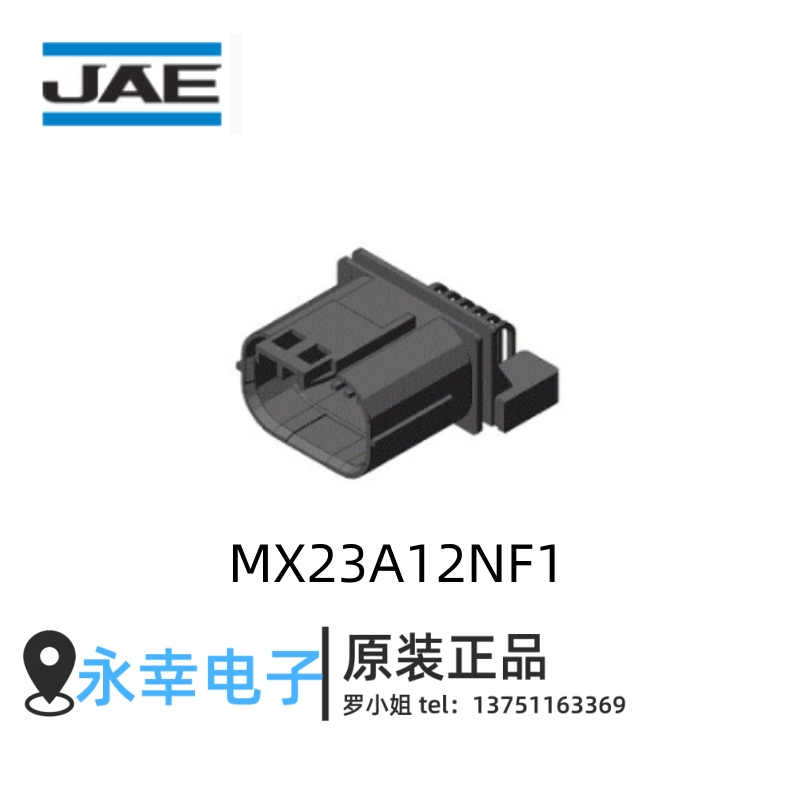

产品展示
